| Socket | AM5 |
| Procesador | Soporta AMD Ryzen™ 7000 y Ryzen™ 8000 Series |
| Chipset | AMD X670 |
| Ranuras de memoria DDR5 | 4 |
| Máxima velocidad de memoria | 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 MT/s, memoria ECC y no ECC sin búfer |
| Máxima capacidad de memoria | 192 GB |
| Interfaz gráfica | Requiere procesador con video integrado |
| PCI-E 5.0 x16 | 2 (Admiten el modo x16 o modos x8/x4) |
| PCI-E 4.0 x16 | 1 (Admite el modo x4) |
| PCI-E 4.0 x4 | 0 |
| PCI-E 3.0 x1 | 0 |
| PCIe Mini | No |
| SATA III | 4 |
| M.2 | M.2_1 (Key M) tipo 2242/2260/2280, compatible con PCIe 5.0 x4 M.2_2 (Key M) tipo 2242/2260/2280, compatible con PCIe 5.0 x4 M.2_3 (Key M) tipo 2242/2260/2280/22110, compatible con PCIe 5.0 x4 M.2_4 (Key M) tipo 2242/2260/2280, compatible con PCIe 4.0 x4 |
| Controlador RAID | Admite RAID 0, RAID 1 y RAID 10 para dispositivos de almacenamiento NVMe y SATA. |

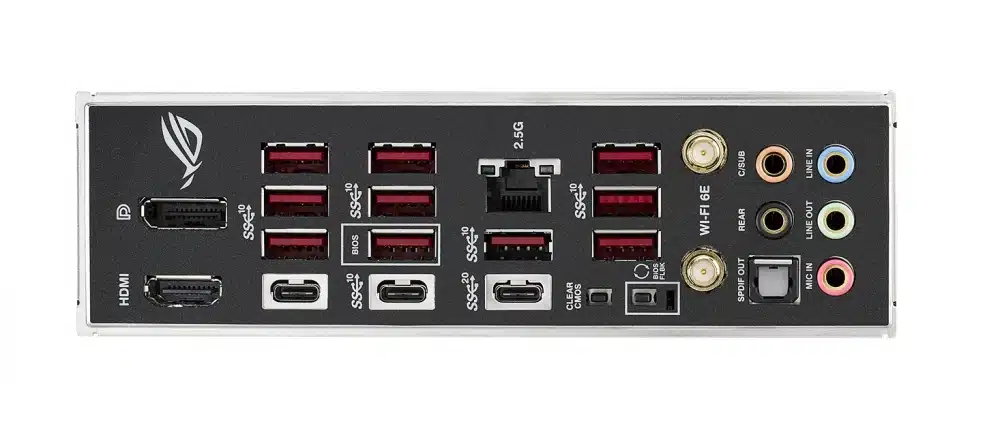

| USB 2.0 | Frontales: 6 |
| USB 3.2 Gen1 | Frontales: 2/td> |
| USB 3.2 Gen2 tipo A | Traseros: 10 |
| USB 3.2 Gen2 tipo C | Traseros: 2 |
| USB 3.2 Gen2x2 tipo C | Frontales: 1 Traseros: 1 |
| USB 4 tipo C | 0 |
| D-Sub | No |
| DVI | No |
| HDMI | Si |
| DisplayPort | Si |
| Thunderbolt 4 | No |
| Puerto serial | No |
| Puerto paralelo | No |
| Audio integrado | ROG SupremeFX 7.1 Sonido Surround Alta Definición Audio CODEC ALC4080 |
| Salida óptica SPDIF | Si |
| Red | Intel® 2.5Gb Ethernet |
| WiFi | Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| Bluetooth | 5.2 |
| PS2 | No |
| Tamaño estándar | ATX |
| Otros | No |

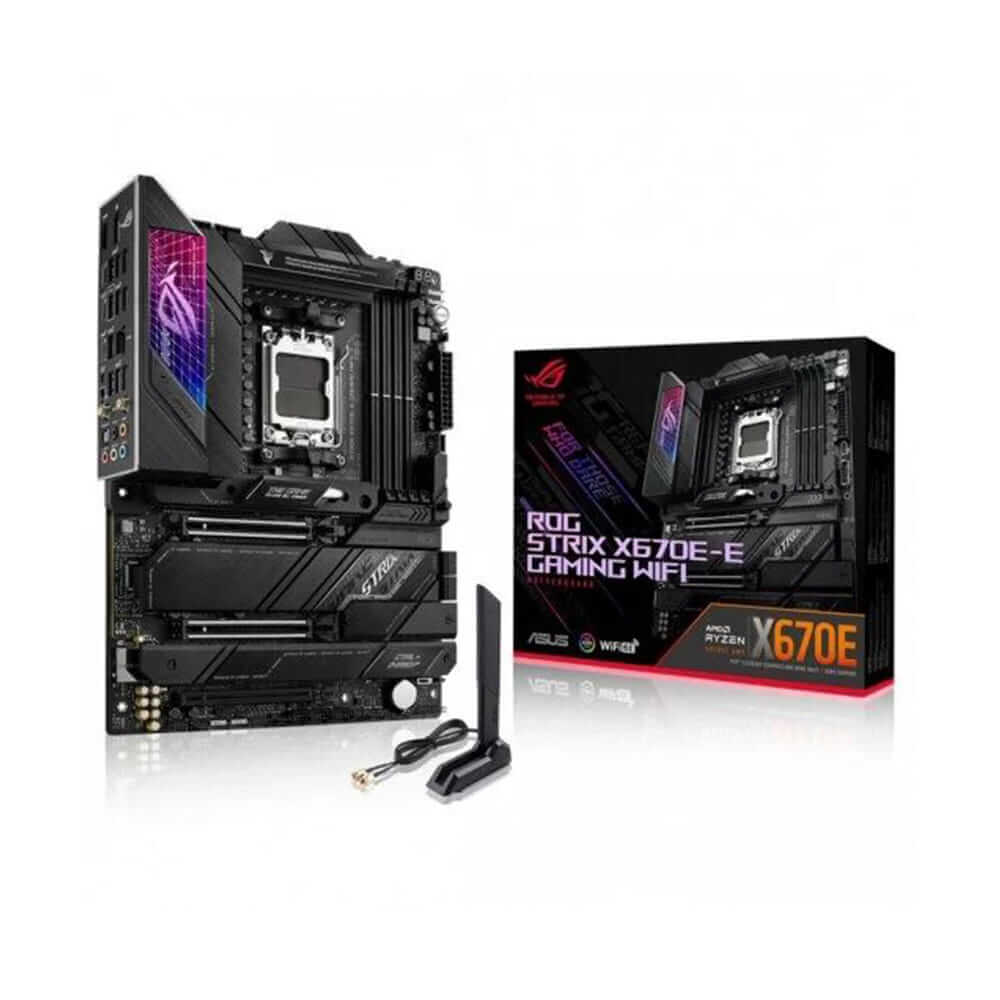

Motherboard Asus Rog Strix X670-E Gaming Wifi BOX ATX AM5
$ Consultar
SKU: 90MB1BR0-M0EAY0
